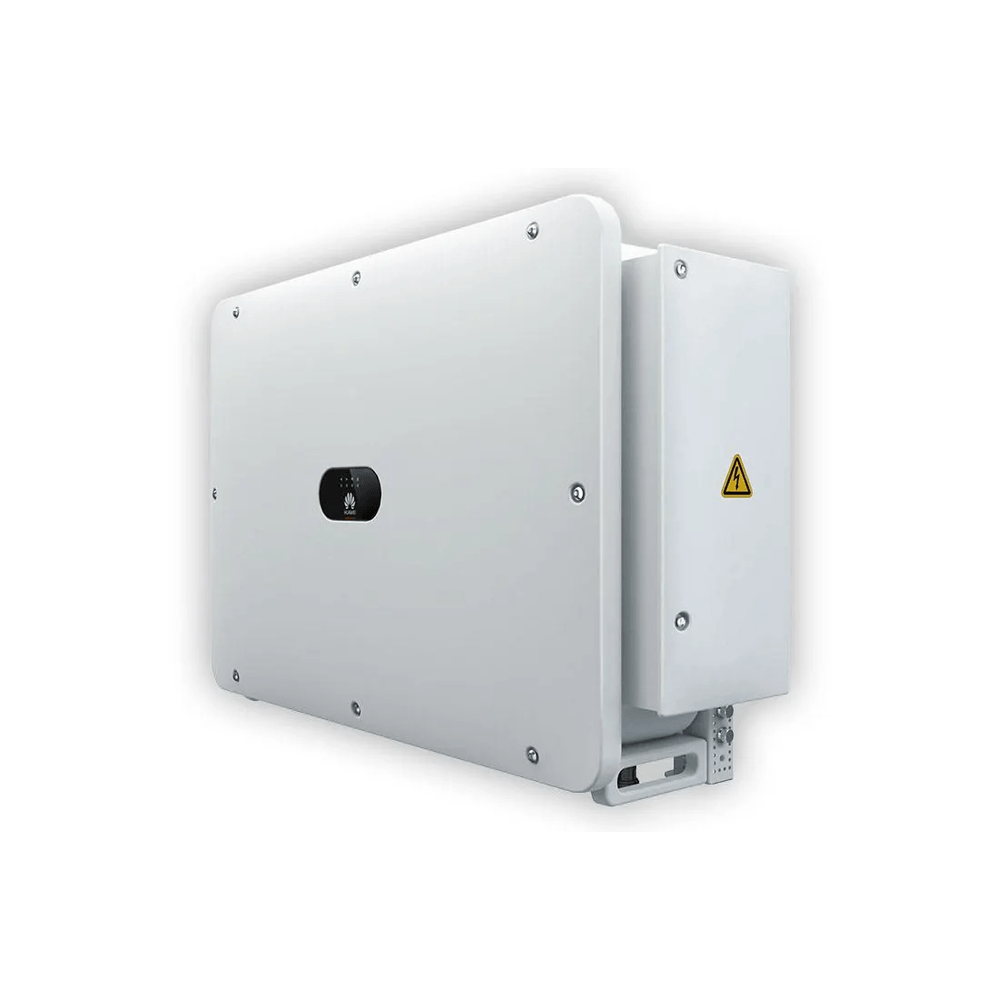

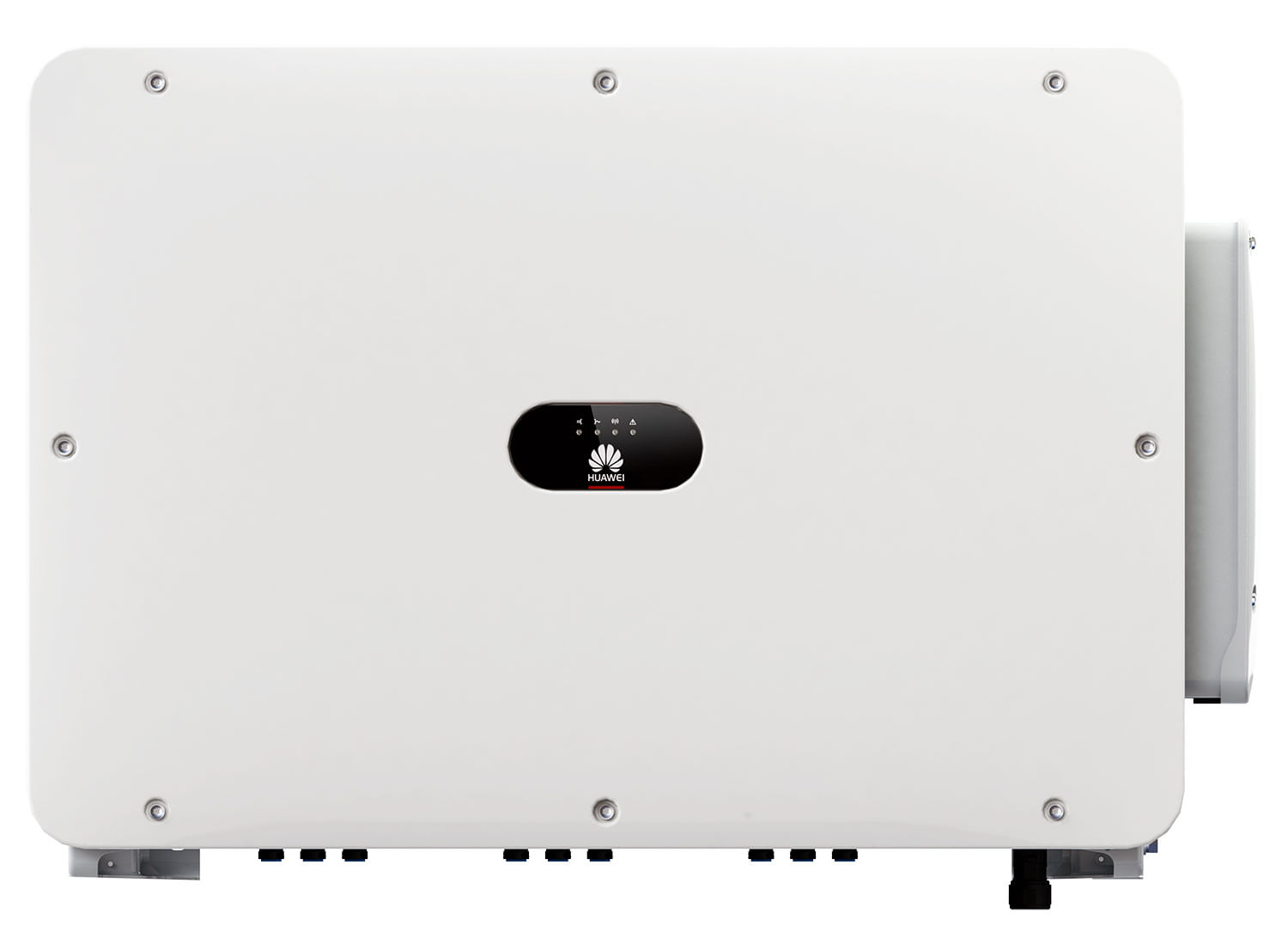

Inversor/Gerador Solar On-Grid 215KW Trif. 800v SUN2000-215KTL-H3 - Huawei

Ref:
03820567

Inversor/Gerador Solar On-Grid 215KW Trif. 800v SUN2000-215KTL-H3 - Huawei

Ref:
03820567

De: R$ 45.790,00Por: R$ 41.211,00ou X de

Economia de R$ 4.579,00

-
+
Comprar

Especificação

Especificações

MarcaHuawei
Peso86 Kg
Referencia FabricanteSUN2000-215KTL-H3
Grau de ProteçãoIP-66
Wi-FiSem Wi-fi
FaseTrifásico
Kilowatts215kw
Tensão800V

Descrição

Inversor/Gerador Solar On-Grid 215KW Trif. 800v SUN2000-215KTL-H3 - Huawei

Dados técnicos

Eficiência
Eficiência máxima 99,0%
Eficiência europeia ? 98,8%

Input
Max. Input Voltage 1,500 V
Number of MPP Trackers 3
Max. Current per MPPT 100A/100A/100A
Max. PV Inputs per MPPT 4/5/5
Start Voltage 550 V
MPPT Operating Voltage Range 500 V ~ 1,500 V
Nominal Input Voltage 1,080 V

Nominal AC Active Power 200,000 W
Max. AC Apparent Power 215,000 VA
Max. AC Active Power (cos?=1) 215,000 W
Nominal Output Voltage 800 V, 3W + PE
Rated AC Grid Frequency 50 Hz / 60 Hz
Nominal Output Current 144.4 A
Max. Output Current 155.2 A
Adjustable Power Factor Range 0.8 LG ... 0.8 LD
Max. Total Harmonic Distortion ? 3%


Protection
Input-side Disconnection Device Yes
Anti-islanding Protection Yes
AC Overcurrent Protection Yes
DC Reverse-polarity Protection Yes
PV-array String Fault Monitoring Yes
DC Surge Arrester Type II
AC Surge Arrester Type II
DC Insulation Resistance Detection Yes
Residual Current Monitoring Unit Yes
Communication
Display LED Indicators, WLAN + APP
USB Yes
MBUS Yes
RS485 Yes

General
Dimensions (W x H x D) 1,035 x 700 x 365 mm (40.7 x 27.6 x 14.4 inch)
Weight (with mounting plate) ?86 kg (191.8 lb.)
Operating Temperature Range -25°C ~ 60°C (-13°F ~ 140°F)
Cooling Method Smart Air Cooling
Max. Operating Altitude without Derating 4,000 m (13,123 ft.)
Relative Humidity 0 ~ 100%
DC Connector Staubli MC4 EVO2
AC Connector Waterproof Connector + OT/DT Terminal
Protection Degree IP66
Topology Transformerless

*MONITORAMENTO NAO INCLUSO*

* Imagem meramente ilustrativas
